Dustfall securely captures odor components and dust in various factories with a large amount of water and a water film.

  • Capturing odors with water film
  • Low pressure loss
Dustfall, the next-generation dust collection equipment that eliminates dust and odor problems in factories FY2005 Kansai Bureau of Economy, Trade and Industry NBK Grand Prize Prize in the Environment and Amenities category

Reliable dust collection with water film like a waterfall

screen1
screen2

Aquablaster prevents circulating water putrefaction!

アクアブラスター

The built-in Aquablaster prevents water putrefaction and minimizes sludge generation. It also enables long-term use of circulating water.

*It depends on the types of dust and the concentration.

Dustfall, the next-generation dust collection equipment that eliminates dust and odor problems in factories

Dustfall, the next-generation dust collection equipment
that eliminates dust and odor problems in factories

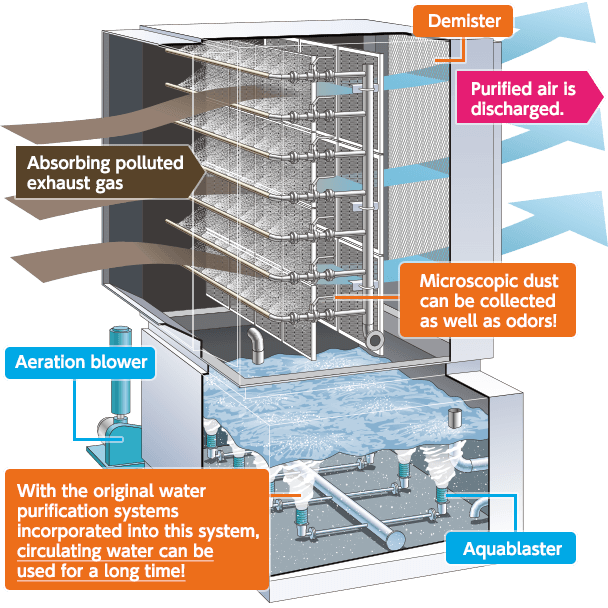

Principle and mechanism of Dustfall

  • It is a wet-type dust collection equipment that forms a water film like a waterfall with a large amount of water of 100 to 180 L / min per square meter.
  • Water is fed from a tank with the circulating water purification systems.

Aquablaster makes a difference compared to other dust collection equipment!
Four features of Dustfall

1. A water curtain collects microscopic dust.

This system creates a cascade-like water curtain to collect fine particles.

2. Circulating water purification devices are incorporated into this system.

Aquablaster, the circulating water purification system, will purify circulating water and will extend the water's life span.

3. This system is capable of treating a high volume of air.

This system can treat a pollutant gas up to 2.5 m/s. Despite its small dimensions, it has high capacity.

4. Dust collection system* (*optional)

We propose an optimal dust collection system depending on the types of dust to be collected.

Epoch-making special layered stainless-steel screen standardly mounted in Dustfall

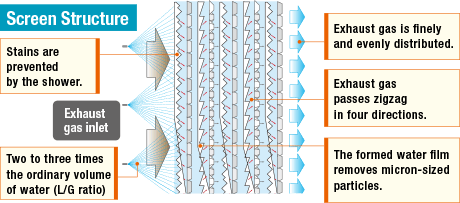

Screen Structure
Screen Structure

Dustfall Standard Specifications

Detailed View

Detailed View

Specification table

ModelDF-6WDF-12WDF-16WDF-20W
Pressure Loss100 - 200200 - 400300 - 500400 - 600
Treatment Capacity m³/minIn normal operation 200pa - 400pa
Tank Capacity (L)2,000L2,500L2,500L3,000L
Frequency50Hz60Hz50Hz60Hz50Hz60Hz50Hz60Hz
Pump Output (kw)3.7kw5.5kw5.5kw7.5kw
Blower Output (kw)1.7kw2.2kw1.7kw2.2kw1.7kw2.2kw1.7kw2.2kw
Width (mm)1,700 (Maximum 1,900)1,700 (Maximum 1,900)1,700 (Maximum 1,900)1,700 (Maximum 1,900)
Depth (mm)2,2002,7002,7003,200
Height (mm)2,300 (Maximum 2,400)2,800 (Maximum 2,900)3,500 (Maximum 3,600)3,500 (Maximum 3,600)

* The design is subject to change without notice.
